LIN master node class via SoftwareSerial. More...

#include <LIN_master_SoftwareSerial.h>

Inheritance diagram for LIN_Master_SoftwareSerial:

Public Member Functions
	LIN_Master_SoftwareSerial (uint8_t PinRx, uint8_t PinTx, bool InverseLogic=false, const char NameLIN[]="Master", const int8_t PinTxEN=INT8_MIN)
	Class constructor.

void	begin (uint16_t Baudrate=19200)
	Open serial interface.

void	end (void)
	Close serial interface.

Public Member Functions inherited from LIN_Master_Base
	LIN_Master_Base (const char NameLIN[]="Master", const int8_t PinTxEN=INT8_MIN)
	LIN master node constructor.

virtual	~LIN_Master_Base (void)
	LIN master node destructor, here dummy. Any class with virtual functions should have virtual destructor.

void	resetStateMachine (void)
	Reset LIN state machine.

LIN_Master_Base::state_t	getState (void)
	Getter for LIN state machine state.

void	resetError (void)
	Clear error of LIN state machine.

LIN_Master_Base::error_t	getError (void)
	Getter for LIN state machine error.

void	getFrame (LIN_Master_Base::frame_t &Type, uint8_t &Id, uint8_t &NumData, uint8_t Data[])
	Getter for LIN frame.

LIN_Master_Base::state_t	sendMasterRequest (LIN_Master_Base::version_t Version=LIN_Master_Base::LIN_V2, uint8_t Id=0x00, uint8_t NumData=0, uint8_t Data[]=NULL)
	Start sending a LIN master request frame in background (if supported)

LIN_Master_Base::error_t	sendMasterRequestBlocking (LIN_Master_Base::version_t Version=LIN_Master_Base::LIN_V2, uint8_t Id=0x00, uint8_t NumData=0, uint8_t Data[]=NULL)
	Send a blocking LIN master request frame (no background operation)

LIN_Master_Base::state_t	receiveSlaveResponse (LIN_Master_Base::version_t Version=LIN_Master_Base::LIN_V2, uint8_t Id=0x00, uint8_t NumData=0)
	Start sending a LIN slave response frame in background (if supported)

LIN_Master_Base::error_t	receiveSlaveResponseBlocking (LIN_Master_Base::version_t Version=LIN_Master_Base::LIN_V2, uint8_t Id=0x00, uint8_t NumData=0, uint8_t *Data=NULL)
	Send a blocking LIN slave response frame (no background operation)

LIN_Master_Base::state_t	handler (void)
	Handle LIN background operation (call until STATE_DONE is returned)

Protected Member Functions
LIN_Master_Base::state_t	_sendBreak (void)
	Send LIN break.

LIN_Master_Base::state_t	_sendFrame (void)
	Send LIN bytes (request frame: SYNC+ID+DATA[]+CHK; response frame: SYNC+ID)

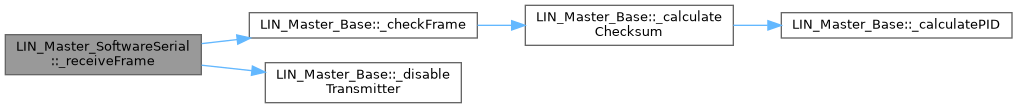

LIN_Master_Base::state_t	_receiveFrame (void)
	Read and check LIN frame.

Protected Member Functions inherited from LIN_Master_Base
uint8_t	_calculatePID (void)
	Calculate protected frame ID.

uint8_t	_calculateChecksum (uint8_t NumData, uint8_t Data[])
	Calculate LIN frame checksum.

LIN_Master_Base::error_t	_checkFrame (void)
	Check received LIN frame.

void	_enableTransmitter (void)
	Enable RS485 transmitter (DE=high)

void	_disableTransmitter (void)
	Disable RS485 transmitter (DE=low)

Additional Inherited Members
Public Types inherited from LIN_Master_Base
enum	version_t : uint8_t { LIN_V1 = 1 , LIN_V2 = 2 }
	LIN protocol version. More...

enum	frame_t : uint8_t { MASTER_REQUEST = 0x01 , SLAVE_RESPONSE = 0x02 }
	LIN frame type. More...

enum	state_t : uint8_t { STATE_OFF = 0x01 , STATE_IDLE = 0x02 , STATE_BREAK = 0x04 , STATE_BODY = 0x08 , STATE_DONE = 0x10 }
	state of LIN master state machine. Use bitmasks for fast checking multiple states More...

enum	error_t : uint8_t { NO_ERROR = 0x00 , ERROR_STATE = 0x01 , ERROR_ECHO = 0x02 , ERROR_TIMEOUT = 0x04 , ERROR_CHK = 0x08 , ERROR_MISC = 0x80 }
	LIN error codes. Use bitmasks, as error is latched. Use same as LIN_slave_portable. More...

Public Attributes inherited from LIN_Master_Base
char	nameLIN [LIN_MASTER_BUFLEN_NAME]
	LIN node name, e.g. for debug.

Protected Attributes inherited from LIN_Master_Base
int8_t	pinTxEN
	optional Tx direction pin, e.g. for LIN via RS485

uint16_t	baudrate
	communication baudrate [Baud]

LIN_Master_Base::state_t	state
	status of LIN state machine

LIN_Master_Base::error_t	error
	error state. Is latched until cleared

uint32_t	timePerByte
	time [us] per byte at specified baudrate

uint32_t	timeoutFrame
	max. frame duration [us]

LIN_Master_Base::version_t	version
	LIN protocol version.

LIN_Master_Base::frame_t	type
	LIN frame type.

uint8_t	id
	LIN frame identifier (protected or unprotected)

uint8_t	lenTx
	send buffer length (max. 12)

uint8_t	bufTx [12]
	send buffer incl. BREAK, SYNC, DATA and CHK (max. 12B)

uint8_t	lenRx
	receive buffer length (max. 12)

uint8_t	bufRx [12]
	receive buffer incl. BREAK, SYNC, DATA and CHK (max. 12B)

uint32_t	timeStart
	starting time [us] for frame timeout

Detailed Description

LIN master node class via SoftwareSerial.

Definition at line 36 of file LIN_master_SoftwareSerial.h.

Constructor & Destructor Documentation

◆ LIN_Master_SoftwareSerial()

LIN_Master_SoftwareSerial::LIN_Master_SoftwareSerial	(	uint8_t	PinRx,
		uint8_t	PinTx,
		bool	InverseLogic = `false`,
		const char	NameLIN[] = `"Master"`,
		const int8_t	PinTxEN = `INT8_MIN`
	)

Class constructor.

Constructor for LIN node class using SoftwareSerial.

Constructor for LIN node class for using SoftwareSerial. Initialize SW serial instance.

Parameters

[in]	PinRx	GPIO used for reception
[in]	PinTx	GPIO used for transmission
[in]	InverseLogic	use inverse logic (default = false)
[in]	NameLIN	LIN node name (default = "Master")
[in]	PinTxEN	optional Tx enable pin (high active) e.g. for LIN via RS485 (default = -127/none)
