LIN master node base class. More...

#include <LIN_master_Base.h>

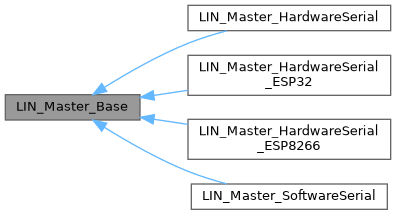

Inheritance diagram for LIN_Master_Base:

[legend]

Public Types
enum	version_t : uint8_t { LIN_V1 = 1 , LIN_V2 = 2 }
	LIN protocol version. More...

enum	frame_t : uint8_t { MASTER_REQUEST = 0x01 , SLAVE_RESPONSE = 0x02 }
	LIN frame type. More...

enum	state_t : uint8_t { STATE_OFF = 0x01 , STATE_IDLE = 0x02 , STATE_BREAK = 0x04 , STATE_BODY = 0x08 , STATE_DONE = 0x10 }
	state of LIN master state machine. Use bitmasks for fast checking multiple states More...

enum	error_t : uint8_t { NO_ERROR = 0x00 , ERROR_STATE = 0x01 , ERROR_ECHO = 0x02 , ERROR_TIMEOUT = 0x04 , ERROR_CHK = 0x08 , ERROR_MISC = 0x80 }
	LIN error codes. Use bitmasks, as error is latched. Use same as LIN_slave_portable. More...

Public Member Functions
	LIN_Master_Base (const char NameLIN[]="Master", const int8_t PinTxEN=INT8_MIN)
	LIN master node constructor.

virtual	~LIN_Master_Base (void)
	LIN master node destructor, here dummy. Any class with virtual functions should have virtual destructor.

virtual void	begin (uint16_t Baudrate=19200)
	Open serial interface.

virtual void	end (void)
	Close serial interface.

void	resetStateMachine (void)
	Reset LIN state machine.

LIN_Master_Base::state_t	getState (void)
	Getter for LIN state machine state.

void	resetError (void)
	Clear error of LIN state machine.

LIN_Master_Base::error_t	getError (void)
	Getter for LIN state machine error.

void	getFrame (LIN_Master_Base::frame_t &Type, uint8_t &Id, uint8_t &NumData, uint8_t Data[])
	Getter for LIN frame.

LIN_Master_Base::state_t	sendMasterRequest (LIN_Master_Base::version_t Version=LIN_Master_Base::LIN_V2, uint8_t Id=0x00, uint8_t NumData=0, uint8_t Data[]=NULL)
	Start sending a LIN master request frame in background (if supported)

LIN_Master_Base::error_t	sendMasterRequestBlocking (LIN_Master_Base::version_t Version=LIN_Master_Base::LIN_V2, uint8_t Id=0x00, uint8_t NumData=0, uint8_t Data[]=NULL)
	Send a blocking LIN master request frame (no background operation)

LIN_Master_Base::state_t	receiveSlaveResponse (LIN_Master_Base::version_t Version=LIN_Master_Base::LIN_V2, uint8_t Id=0x00, uint8_t NumData=0)
	Start sending a LIN slave response frame in background (if supported)

LIN_Master_Base::error_t	receiveSlaveResponseBlocking (LIN_Master_Base::version_t Version=LIN_Master_Base::LIN_V2, uint8_t Id=0x00, uint8_t NumData=0, uint8_t *Data=NULL)
	Send a blocking LIN slave response frame (no background operation)

LIN_Master_Base::state_t	handler (void)
	Handle LIN background operation (call until STATE_DONE is returned)

Public Attributes
char	nameLIN [LIN_MASTER_BUFLEN_NAME]
	LIN node name, e.g. for debug.

Protected Member Functions
uint8_t	_calculatePID (void)
	Calculate protected frame ID.

uint8_t	_calculateChecksum (uint8_t NumData, uint8_t Data[])
	Calculate LIN frame checksum.

LIN_Master_Base::error_t	_checkFrame (void)
	Check received LIN frame.

virtual LIN_Master_Base::state_t	_sendBreak (void)
	Send LIN break.

virtual LIN_Master_Base::state_t	_sendFrame (void)
	Send LIN frame body.

virtual LIN_Master_Base::state_t	_receiveFrame (void)
	Receive LIN frame.

void	_enableTransmitter (void)
	Enable RS485 transmitter (DE=high)

void	_disableTransmitter (void)
	Disable RS485 transmitter (DE=low)

Protected Attributes
int8_t	pinTxEN
	optional Tx direction pin, e.g. for LIN via RS485

uint16_t	baudrate
	communication baudrate [Baud]

LIN_Master_Base::state_t	state
	status of LIN state machine

LIN_Master_Base::error_t	error
	error state. Is latched until cleared

uint32_t	timePerByte
	time [us] per byte at specified baudrate

uint32_t	timeoutFrame
	max. frame duration [us]

LIN_Master_Base::version_t	version
	LIN protocol version.

LIN_Master_Base::frame_t	type
	LIN frame type.

uint8_t	id
	LIN frame identifier (protected or unprotected)

uint8_t	lenTx
	send buffer length (max. 12)

uint8_t	bufTx [12]
	send buffer incl. BREAK, SYNC, DATA and CHK (max. 12B)

uint8_t	lenRx
	receive buffer length (max. 12)

uint8_t	bufRx [12]
	receive buffer incl. BREAK, SYNC, DATA and CHK (max. 12B)

uint32_t	timeStart
	starting time [us] for frame timeout

Detailed Description

LIN master node base class.

LIN master node base class. From this class the actual LIN classes for a Serialx are derived.

Definition at line 105 of file LIN_master_Base.h.

Member Enumeration Documentation

◆ error_t

enum LIN_Master_Base::error_t : uint8_t

LIN error codes. Use bitmasks, as error is latched. Use same as LIN_slave_portable.

Enumerator
NO_ERROR	no error
ERROR_STATE	error in LIN state machine
ERROR_ECHO	error reading response echo
ERROR_TIMEOUT	frame timeout error
ERROR_CHK	LIN checksum error.
ERROR_MISC	misc error, should not occur

Definition at line 138 of file LIN_master_Base.h.

◆ frame_t

enum LIN_Master_Base::frame_t : uint8_t

LIN frame type.

Enumerator
MASTER_REQUEST	LIN master request frame.
SLAVE_RESPONSE	LIN slave response frame.

Definition at line 119 of file LIN_master_Base.h.

◆ state_t

enum LIN_Master_Base::state_t : uint8_t

state of LIN master state machine. Use bitmasks for fast checking multiple states

Enumerator
STATE_OFF	LIN interface closed.
STATE_IDLE	no LIN transmission ongoing
STATE_BREAK	sync break is being transmitted
STATE_BODY	rest of frame is being sent/received
STATE_DONE	frame completed

Definition at line 127 of file LIN_master_Base.h.

◆ version_t

enum LIN_Master_Base::version_t : uint8_t

LIN protocol version.

Enumerator
LIN_V1	LIN protocol version 1.x.
LIN_V2	LIN protocol version 2.x.

Definition at line 111 of file LIN_master_Base.h.

Constructor & Destructor Documentation

◆ LIN_Master_Base()

LIN_Master_Base::LIN_Master_Base	(	const char	NameLIN[] = `"Master"`,
		const int8_t	PinTxEN = `INT8_MIN`
	)

LIN master node constructor.

LIN master node constructor. Initialize class variables to default values. For an explanation of the LIN bus and protocol e.g. see https://en.wikipedia.org/wiki/Local_Interconnect_Network. Optional direction switching via TxEn pin, e.g. for LIN via RS485

Parameters

[in]	NameLIN	LIN node name (default = "Master")
[in]	PinTxEN	optional Tx enable pin (high active) e.g. for LIN via RS485 (default = -127/none)

Definition at line 219 of file LIN_master_Base.cpp.

◆ ~LIN_Master_Base()

virtual LIN_Master_Base::~LIN_Master_Base ( void )

inlinevirtual

LIN master node destructor, here dummy. Any class with virtual functions should have virtual destructor.

Definition at line 232 of file LIN_master_Base.h.

Member Function Documentation

◆ _calculateChecksum()

uint8_t LIN_Master_Base::_calculateChecksum	(	uint8_t	NumData,
		uint8_t	Data[]
	)

protected

Calculate LIN frame checksum.

Calculate LIN frame checksum as described in LIN1.x / LIN2.x specs

Parameters

[in]	NumData	number of data bytes in frame
[in]	Data	frame data bytes

Returns: calculated checksum, depending on protocol version

Definition at line 58 of file LIN_master_Base.cpp.

Here is the call graph for this function:

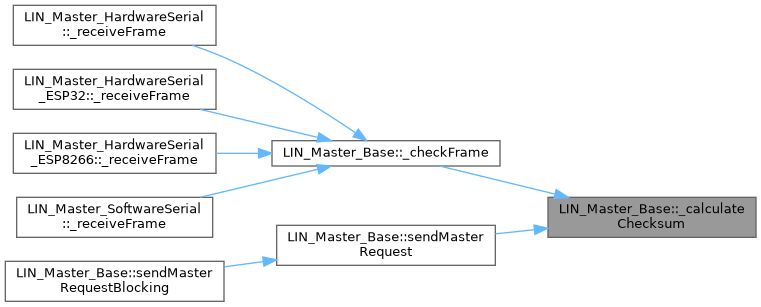

Here is the caller graph for this function:

◆ _calculatePID()

uint8_t LIN_Master_Base::_calculatePID ( void )

protected

Calculate protected frame ID.

Calculate protected frame ID as described in LIN2.0 spec "2.3.1.3 Protected identifier field"

Returns: Protected frame ID

Definition at line 29 of file LIN_master_Base.cpp.

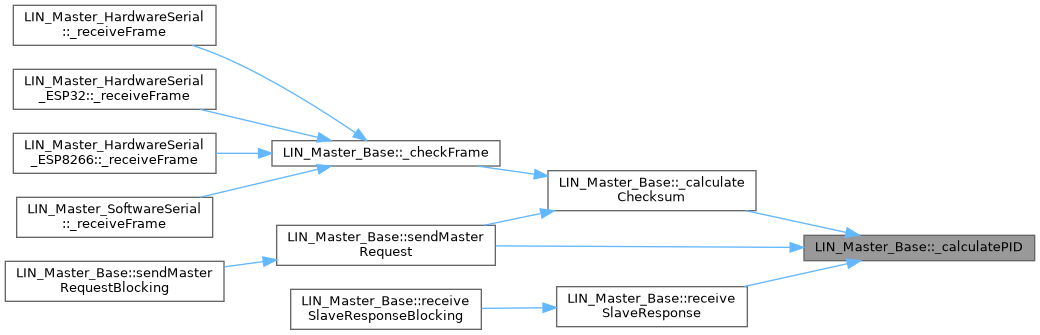

Here is the caller graph for this function:

◆ _checkFrame()

LIN_Master_Base::error_t LIN_Master_Base::_checkFrame ( void )

protected

Check received LIN frame.

Check received LIN frame for echo and frame checksum

Returns: error check result

Definition at line 92 of file LIN_master_Base.cpp.

Here is the call graph for this function:

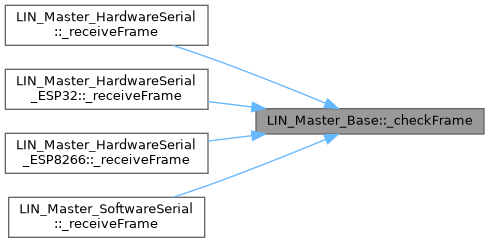

Here is the caller graph for this function:

◆ _disableTransmitter()

void LIN_Master_Base::_disableTransmitter ( void )

inlineprotected

Disable RS485 transmitter (DE=low)

Definition at line 213 of file LIN_master_Base.h.

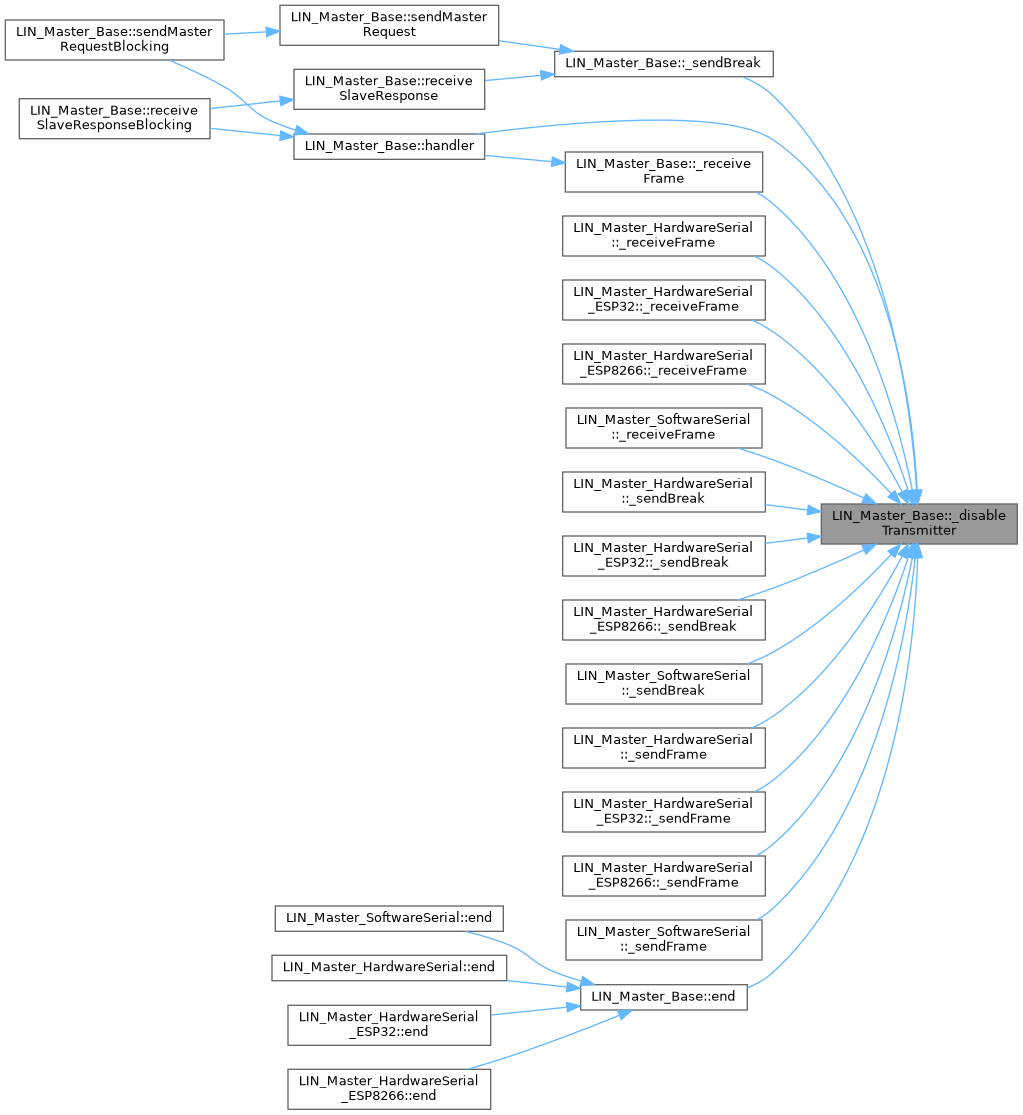

Here is the caller graph for this function:

◆ _enableTransmitter()

void LIN_Master_Base::_enableTransmitter ( void )

inlineprotected

Enable RS485 transmitter (DE=high)

Definition at line 201 of file LIN_master_Base.h.

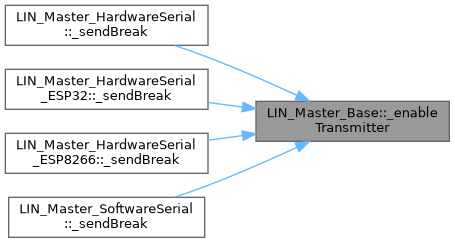

Here is the caller graph for this function:

◆ _receiveFrame()

LIN_Master_Base::state_t LIN_Master_Base::_receiveFrame ( void )

protectedvirtual

Receive LIN frame.

Receive and check LIN frame.

Receive and check LIN frame (request frame: check echo; response frame: check header echo & checksum). Here dummy!

Returns: current state of LIN state machine

Reimplemented in LIN_Master_HardwareSerial, LIN_Master_HardwareSerial_ESP32, LIN_Master_HardwareSerial_ESP8266, and LIN_Master_SoftwareSerial.

Definition at line 191 of file LIN_master_Base.cpp.

Here is the call graph for this function:

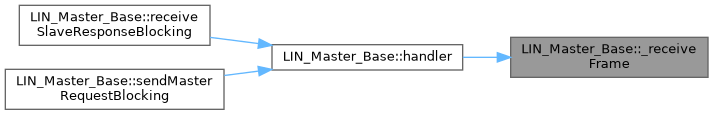

Here is the caller graph for this function:

◆ _sendBreak()

LIN_Master_Base::state_t LIN_Master_Base::_sendBreak ( void )

protectedvirtual

Send LIN break.

Send LIN break (=16bit low). Here dummy!

Returns: current state of LIN state machine

Reimplemented in LIN_Master_HardwareSerial, LIN_Master_HardwareSerial_ESP32, LIN_Master_HardwareSerial_ESP8266, and LIN_Master_SoftwareSerial.

Definition at line 137 of file LIN_master_Base.cpp.

Here is the call graph for this function:

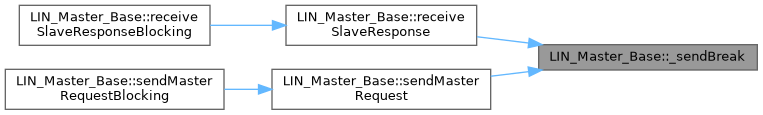

Here is the caller graph for this function:

◆ _sendFrame()

LIN_Master_Base::state_t LIN_Master_Base::_sendFrame ( void )

protectedvirtual

Send LIN frame body.

Send LIN frame body (request frame: SYNC+ID+DATA[]+CHK; response frame: SYNC+ID). Here dummy!

Returns: current state of LIN state machine

Reimplemented in LIN_Master_HardwareSerial, LIN_Master_HardwareSerial_ESP32, LIN_Master_HardwareSerial_ESP8266, and LIN_Master_SoftwareSerial.

Definition at line 171 of file LIN_master_Base.cpp.

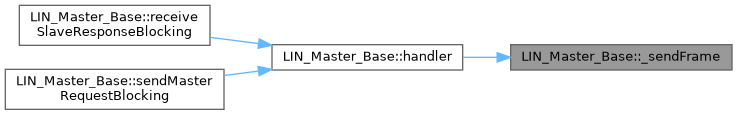

Here is the caller graph for this function:

◆ begin()

void LIN_Master_Base::begin ( uint16_t Baudrate = 19200 )

virtual

Open serial interface.

Open serial interface with specified baudrate. Here dummy!

Parameters

[in] Baudrate communication speed [Baud] (default = 19200)

Reimplemented in LIN_Master_HardwareSerial, LIN_Master_HardwareSerial_ESP32, LIN_Master_HardwareSerial_ESP8266, and LIN_Master_SoftwareSerial.

Definition at line 240 of file LIN_master_Base.cpp.

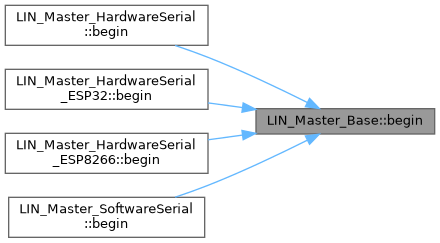

Here is the caller graph for this function:

◆ end()

void LIN_Master_Base::end ( void )

virtual

Close serial interface.

Close serial interface. Here dummy!

Reimplemented in LIN_Master_HardwareSerial, LIN_Master_HardwareSerial_ESP32, LIN_Master_HardwareSerial_ESP8266, and LIN_Master_SoftwareSerial.

Definition at line 279 of file LIN_master_Base.cpp.

Here is the call graph for this function:

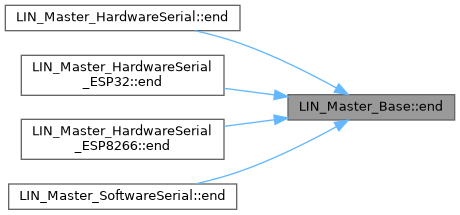

Here is the caller graph for this function:

◆ getError()

LIN_Master_Base::error_t LIN_Master_Base::getError ( void )

inline

Getter for LIN state machine error.

Definition at line 277 of file LIN_master_Base.h.

◆ getFrame()

void LIN_Master_Base::getFrame	(	LIN_Master_Base::frame_t &	Type,
		uint8_t &	Id,
		uint8_t &	NumData,
		uint8_t	Data[]
	)

inline

Getter for LIN frame.

Definition at line 289 of file LIN_master_Base.h.

Here is the caller graph for this function:

◆ getState()

LIN_Master_Base::state_t LIN_Master_Base::getState ( void )

inline

Getter for LIN state machine state.

Definition at line 254 of file LIN_master_Base.h.

◆ handler()

LIN_Master_Base::state_t LIN_Master_Base::handler ( void )

Handle LIN background operation (call until STATE_DONE is returned)

Handle LIN background operation (call until STATE_DONE is returned). For an explanation of the LIN bus and protocol e.g. see https://en.wikipedia.org/wiki/Local_Interconnect_Network

Returns: LIN state machine state

Definition at line 449 of file LIN_master_Base.cpp.

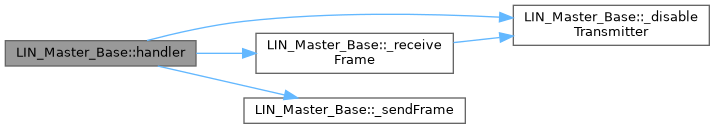

Here is the call graph for this function:

Here is the caller graph for this function:

◆ receiveSlaveResponse()

LIN_Master_Base::state_t LIN_Master_Base::receiveSlaveResponse	(	LIN_Master_Base::version_t	Version = `LIN_Master_Base::LIN_V2`,
		uint8_t	Id = `0x00`,
		uint8_t	NumData = `0`
	)

Start sending a LIN slave response frame in background (if supported)

Send/receive a blocking LIN slave response frame (no background operation)

Send/receive a blocking LIN slave response frame (no background operation). For an explanation of the LIN bus and protocol e.g. see https://en.wikipedia.org/wiki/Local_Interconnect_Network

Parameters

[in]	Version	LIN protocol version
[in]	Id	frame idendifier (protected or unprotected)
[in]	NumData	number of data bytes (0..8)

Returns: LIN state machine state

Definition at line 378 of file LIN_master_Base.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ receiveSlaveResponseBlocking()

LIN_Master_Base::error_t LIN_Master_Base::receiveSlaveResponseBlocking	(	LIN_Master_Base::version_t	Version = `LIN_Master_Base::LIN_V2`,
		uint8_t	Id = `0x00`,
		uint8_t	NumData = `0`,
		uint8_t *	Data = `NULL`
	)

Send a blocking LIN slave response frame (no background operation)

Send/receive a blocking LIN slave response frame (no background operation)

Send/receive a blocking LIN slave response frame (no background operation). For an explanation of the LIN bus and protocol e.g. see https://en.wikipedia.org/wiki/Local_Interconnect_Network

Parameters

[in]	Version	LIN protocol version
[in]	Id	frame idendifier (protected or unprotected)
[in]	NumData	number of data bytes (0..8)
[out]	Data	data bytes

Returns: LIN error

Definition at line 420 of file LIN_master_Base.cpp.

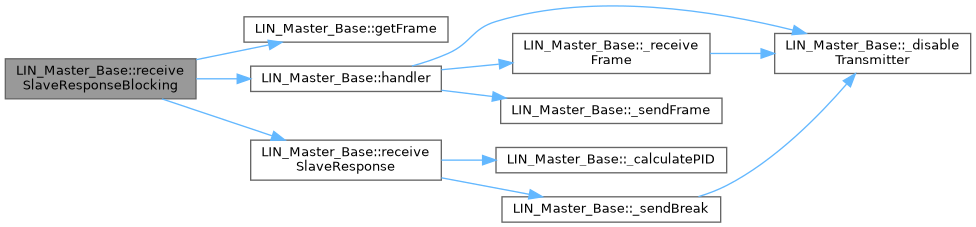

Here is the call graph for this function:

◆ resetError()

void LIN_Master_Base::resetError ( void )

inline

Clear error of LIN state machine.

Definition at line 266 of file LIN_master_Base.h.

◆ resetStateMachine()

void LIN_Master_Base::resetStateMachine ( void )

inline

Reset LIN state machine.

Definition at line 243 of file LIN_master_Base.h.

◆ sendMasterRequest()

LIN_Master_Base::state_t LIN_Master_Base::sendMasterRequest	(	LIN_Master_Base::version_t	Version = `LIN_Master_Base::LIN_V2`,
		uint8_t	Id = `0x00`,
		uint8_t	NumData = `0`,
		uint8_t	Data[] = `NULL`
	)

Start sending a LIN master request frame in background (if supported)

Start sending a LIN master request frame in background (if supported). Background handling is handling by handler(). For an explanation of the LIN bus and protocol e.g. see https://en.wikipedia.org/wiki/Local_Interconnect_Network

Parameters

[in]	Version	LIN protocol version (default = v2)
[in]	Id	frame idendifier (protected or unprotected)
[in]	NumData	number of data bytes (0..8)
[in]	Data	data bytes

Returns: LIN state machine state

Definition at line 305 of file LIN_master_Base.cpp.

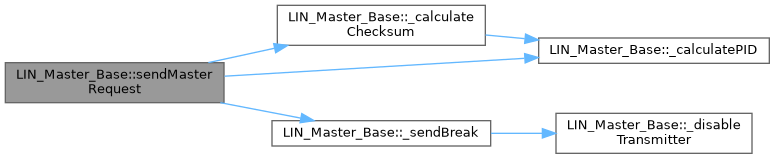

Here is the call graph for this function:

Here is the caller graph for this function:

◆ sendMasterRequestBlocking()

LIN_Master_Base::error_t LIN_Master_Base::sendMasterRequestBlocking	(	LIN_Master_Base::version_t	Version = `LIN_Master_Base::LIN_V2`,
		uint8_t	Id = `0x00`,
		uint8_t	NumData = `0`,
		uint8_t	Data[] = `NULL`
	)

Send a blocking LIN master request frame (no background operation)

Send a blocking LIN master request frame (no background operation). For an explanation of the LIN bus and protocol e.g. see https://en.wikipedia.org/wiki/Local_Interconnect_Network

Parameters

[in]	Version	LIN protocol version
[in]	Id	frame idendifier (protected or unprotected)
[in]	NumData	number of data bytes (0..8)
[in]	Data	data bytes

Returns: LIN error

Definition at line 349 of file LIN_master_Base.cpp.

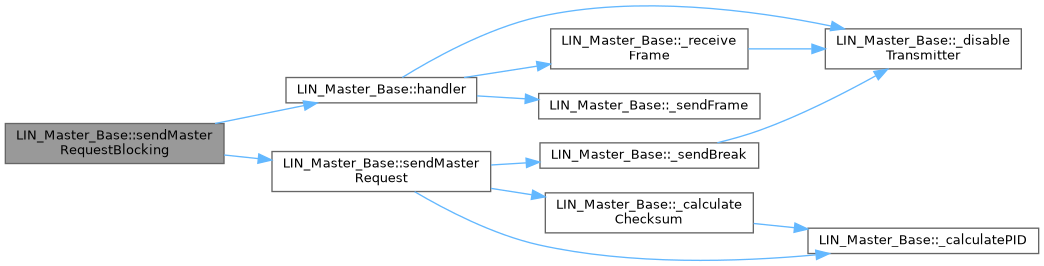

Here is the call graph for this function:

Member Data Documentation

◆ baudrate

uint16_t LIN_Master_Base::baudrate

protected

communication baudrate [Baud]

Definition at line 154 of file LIN_master_Base.h.

◆ bufRx

uint8_t LIN_Master_Base::bufRx[12]

protected

receive buffer incl. BREAK, SYNC, DATA and CHK (max. 12B)

Definition at line 167 of file LIN_master_Base.h.

◆ bufTx

uint8_t LIN_Master_Base::bufTx[12]

protected

send buffer incl. BREAK, SYNC, DATA and CHK (max. 12B)

Definition at line 165 of file LIN_master_Base.h.

◆ error

LIN_Master_Base::error_t LIN_Master_Base::error

protected

error state. Is latched until cleared

Definition at line 156 of file LIN_master_Base.h.

◆ id

uint8_t LIN_Master_Base::id

protected

LIN frame identifier (protected or unprotected)

Definition at line 163 of file LIN_master_Base.h.

◆ lenRx

uint8_t LIN_Master_Base::lenRx

protected

receive buffer length (max. 12)

Definition at line 166 of file LIN_master_Base.h.

◆ lenTx

uint8_t LIN_Master_Base::lenTx

protected

send buffer length (max. 12)

Definition at line 164 of file LIN_master_Base.h.

◆ nameLIN

char LIN_Master_Base::nameLIN[LIN_MASTER_BUFLEN_NAME]

LIN node name, e.g. for debug.

Definition at line 174 of file LIN_master_Base.h.

◆ pinTxEN

int8_t LIN_Master_Base::pinTxEN

protected

optional Tx direction pin, e.g. for LIN via RS485

Definition at line 153 of file LIN_master_Base.h.

◆ state

LIN_Master_Base::state_t LIN_Master_Base::state

protected

status of LIN state machine

Definition at line 155 of file LIN_master_Base.h.

◆ timeoutFrame

uint32_t LIN_Master_Base::timeoutFrame

protected

max. frame duration [us]

Definition at line 158 of file LIN_master_Base.h.

◆ timePerByte

uint32_t LIN_Master_Base::timePerByte

protected

time [us] per byte at specified baudrate

Definition at line 157 of file LIN_master_Base.h.

◆ timeStart

uint32_t LIN_Master_Base::timeStart

protected

starting time [us] for frame timeout

Definition at line 168 of file LIN_master_Base.h.

◆ type

LIN_Master_Base::frame_t LIN_Master_Base::type

protected

LIN frame type.

Definition at line 162 of file LIN_master_Base.h.

◆ version

LIN_Master_Base::version_t LIN_Master_Base::version

protected

LIN protocol version.

Definition at line 161 of file LIN_master_Base.h.

The documentation for this class was generated from the following files:

Public Types

Public Member Functions

Public Attributes

Protected Member Functions

Protected Attributes

Detailed Description

Member Enumeration Documentation

◆ error_t

◆ frame_t

◆ state_t

◆ version_t

Constructor & Destructor Documentation

◆ LIN_Master_Base()

◆ ~LIN_Master_Base()

Member Function Documentation

◆ _calculateChecksum()

◆ _calculatePID()

◆ _checkFrame()

◆ _disableTransmitter()

◆ _enableTransmitter()

◆ _receiveFrame()

◆ _sendBreak()

◆ _sendFrame()

◆ begin()

◆ end()

◆ getError()

◆ getFrame()

◆ getState()

◆ handler()

◆ receiveSlaveResponse()

◆ receiveSlaveResponseBlocking()

◆ resetError()

◆ resetStateMachine()

◆ sendMasterRequest()

◆ sendMasterRequestBlocking()

Member Data Documentation

◆ baudrate

◆ bufRx

◆ bufTx

◆ error

◆ id

◆ lenRx

◆ lenTx

◆ nameLIN

◆ pinTxEN

◆ state

◆ timeoutFrame

◆ timePerByte

◆ timeStart

◆ type

◆ version
