Portable LIN Master Node Emulation

Doxygen docs

Introduction

This Arduino library implements a Local Interconnect Network master node emulation. For an explanation of the LIN bus and protocol e.g. see https://en.wikipedia.org/wiki/Local_Interconnect_Network.

Optionally LIN protocoll via RS485 is supported (see respective examples). In this case Rx-enable (=RE) must be statically enabled to receive LIN echo, and Tx-enable (=DE) is controlled by the Arduino.

The class structure is very flexible and aims at supporting different Serial interfaces and architectures. It can easily be ported to other boards - in which case a pull request is highly appreciated…

For a similar Arduino libary for LIN slave emulation see https://github.com/gicking/LIN_slave_portable_Arduino

Supported functionality

• blocking and non-blocking operation
• multiple, simultaneous LIN nodes
• supports HardwareSerial and SoftwareSerial
• supports LIN protocoll via RS485 with Tx direction switching

Supported Boards (with additional LIN hardware)

• Arduino AVR boards, e.g. Uno, Mega or Nano
• Arduino AVR Cortex-M boards, e.g. Due
• Arduino Renesas Cortex-M boards, e.g. Uno R4 Minima (only SoftwareSerial)
• ATtiny boards, e.g. Adafruit Trinket (only SoftwareSerial)
• ESP32 boards, e.g. Arduino Nano-ESP32 or Espressif Wroom-32U
• ESP8266 boards, e.g. Wemos D1 mini
• STM32 boards, e.g. Nucleo-STM32L432KC

Notes

• The sender state machine relies on reading back its 1-wire echo. If no LIN or K-Line transceiver is used, connect Rx&Tx (only one Tx to avoid damage)

• For background operation, the handler() method must be called at least every 500us, especially after initiating a frame. Optionally it can be called from within serialEvent()

• For ESP32 and ESP8266, library EspSoftwareSerial must be installed, even if SoftwareSerial is not used in project

Test Matrix

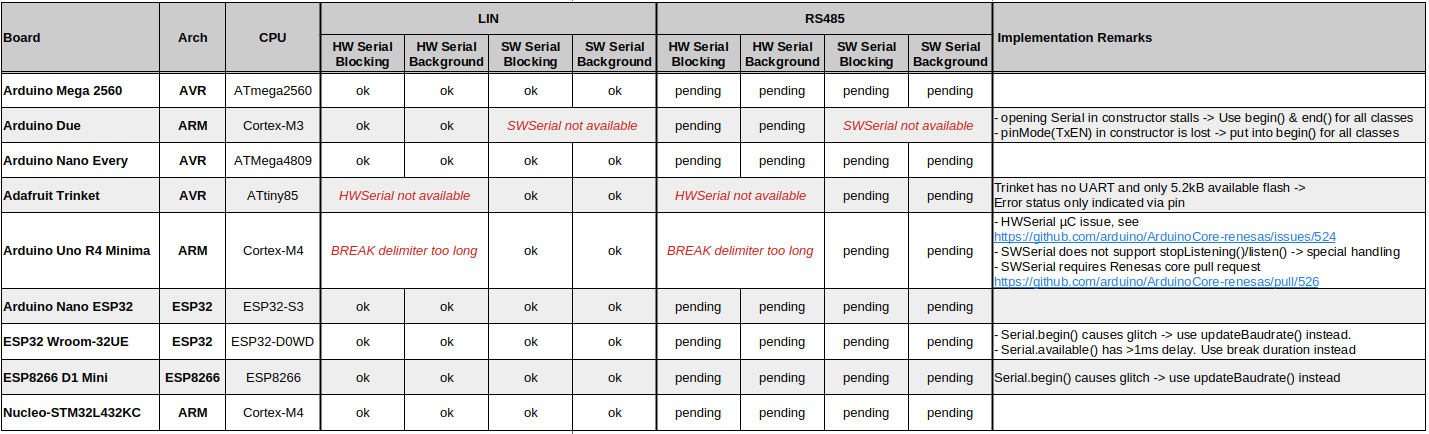

An ok in the below test matrix indicates that normal master request frames are sent, slave responses are received and bus disconnection is detected (-> error). Also, code execution starts with only external supple, i.e. USB not connected. No extensive testing of all possible error cases was performed. Please let me know if you experience unexpected errors.

Logic analyzer screenshots of LIN bus, idle pin and error pin levels are stored in folder “./extras/testing/Board”

Have fun!, Georg

---

Revision History

v1.9 (2026-02-05)

• add support for ESP32-S3, Nano Every, STM32, and Uno R4 Minima (no HWSerial, see issue)
• consolidate examples for different boards and LIN/RS485 interfaces
• remove Ticker examples, due to standard 1ms min. period too long
• remove Event examples, due to serialEvent()offers no benefit and is becoming obsolete

v1.8 (2025-10-28)

• add dependency on EspSoftwareSerial in library.properties
• add notes for EspSoftwareSerial dependency
• in ESP32 Ticker example use standard Ticker.attach() instead of Espressif specific Ticker.attach_us(). Note: ESP8266 has 1ms minimum
• add ESP32 Nano w/ Arduino ESP32 core to integration tests

v1.7 (2025-05-03)

• harmonize with LIN slave portable
• simplified debug output via macro
• renamed SERIAL_DEBUG to SERIAL_CONSOLE to avoid mixup with (internal) debug output
• full regresstion tests and add some comments
• update reference

v1.6 (2025-04-27)

• for clarity add “this->” for all internal method calls and class variable access
• full regresstion tests and add some comments
• update reference

v1.5 (2025-04-26)

• add optional timeout to debug Serial begin(). Is relevant for native USB ports if no USB is connected

v1.4 (2025-01-26)

• replace *Stream in LIN base class by actual serial interface to reduce overhead
• add library reference via Doxygen
• increase frame timeout to handle slow slave responses
• improve CI test coverage via Github Actions
• performed recursion tests in above test matrix

v1.3 (2024-12-14)

• add support for LIN protocol via RS485 PHY
• add Github Actions for CI tests
• add more examples
• increase test coverage

v1.2 (2023-06-02)

• Make SoftwareSerial optional for ESP32 to avoid library issue
• add examples & increase test coverage for more boards

v1.1 (2022-12-10)

• minor cosmetic changes and bugfixes
• changed name to meet Arduino naming conventions. Specifically omit “(“ and “)”

v1.0 (2022-12-10)

• initial release
• supersedes less portable LIN master library
